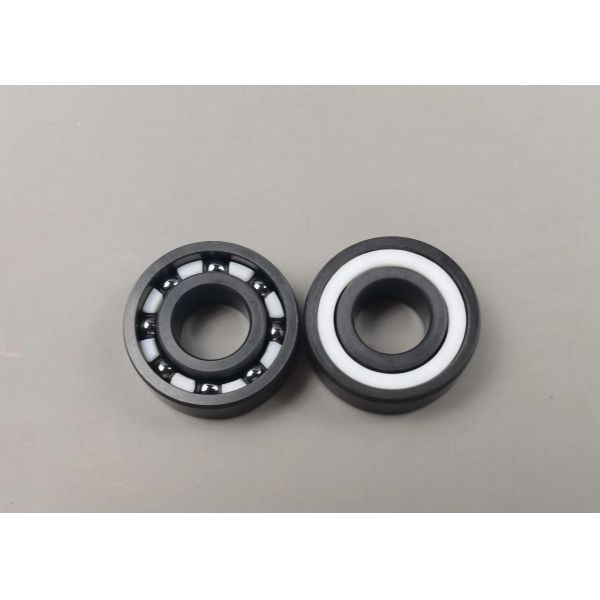

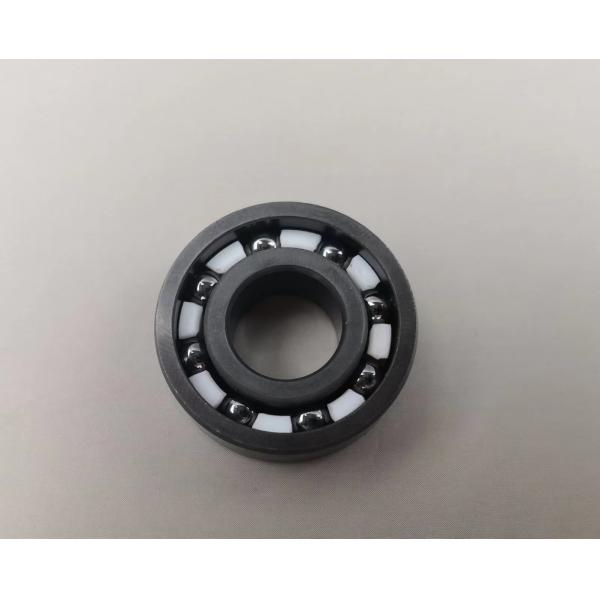

Ceramic Bearing 6001 Of SSiC Races And Balls+ Cage With P6/ABEC3 Precision
Description of Ceramic Bearing 6001 (SSiC+):
1. SSiC races and balls: Are made of highly purified, sub-micron silicon carbide material. The atmospheric pressure solid phase sintering method at a high temperature of 2250°C are used to produce SSiC (Sintering SiC), so the free silicon and free carbon in the products are close to the theoretical values and can resist corrosion by hydrofluoric acid, which is the most excellent ceramic material with the best corrosion resistance among the known materials.
2. cage: is commonly known as "plastic king". It is made of tetrafluoroethylene polymerization of polymer compounds, with excellent chemical stability, corrosion resistance (is one of the best corrosion resistance materials in the world today, in addition to molten metal sodium and liquid fluorine, the ability of all other chemicals, boiling in aqua aqua can not change, Widely used in all kinds of acid and alkali resistance and organic solvent), sealing, high lubrication, non-viscosity, electrical insulation and good anti-aging endurance, excellent temperature resistance (can work in +250℃ to -180℃ temperature for a long time). So the cage and seals of this material fitted in bearings can be used in many special working condition.
Performance advantages of Ceramic Bearing 6001 (SSiC+):
With a density and coefficient of linear expansion close to that of silicon nitride ceramic materials, high hardness, wear resistance, resistance to various strong acids, strong alkalis, salt corrosion, high temperature resistance.
Application of Ceramic Bearing 6001 (SSiC+):
SSiC all ceramic bearings are preferred structure for the petroleum, chemical, semiconductor, food machinery, pharmaceutical industry, etc., and are the most widely used ceramic bearings.
| ►Key properties of pressureless sintered silicon carbide |
| ♦ Max Temperature up to 1650℃ |
| ♦ Low density:3.15-3.18 g/cm3 |
| ♦ High strength |
| ♦ Low thermal expansion : 4.0 (10-6/℃) |
| ♦ High thermal conductivity:120 W/m°K |
| ♦ High hardness:2800 HV5 |
| ♦ High elastic modulus: 410GPa |
| ♦ Superior chemical stability,resistance to acid and alkali corrosion (incld. hydrofluoric acid) |
